Simple Series
ETM742S Flush Mounting Box
Flush mounting big wall boxes for accessories , universal series
Model: ETM742S Type: Box Size: 71 mm Applications: Commercial & Office, Prefab & Modular Housing, Prefab Construction, Residential Electrical Installation, Wooden Wall Construction Supply Mode: RFQ
ModelETM742S
Product TypeBox
Size / Depth71 mm
MaterialPP
ApplicationsCommercial & Office, Prefab & Modular Housing, Prefab Construction, Residential Electrical Installation, Wooden Wall Construction
DocumentsVerified model documents
Product Overview
Flush mounting big wall boxes for accessories , universal series

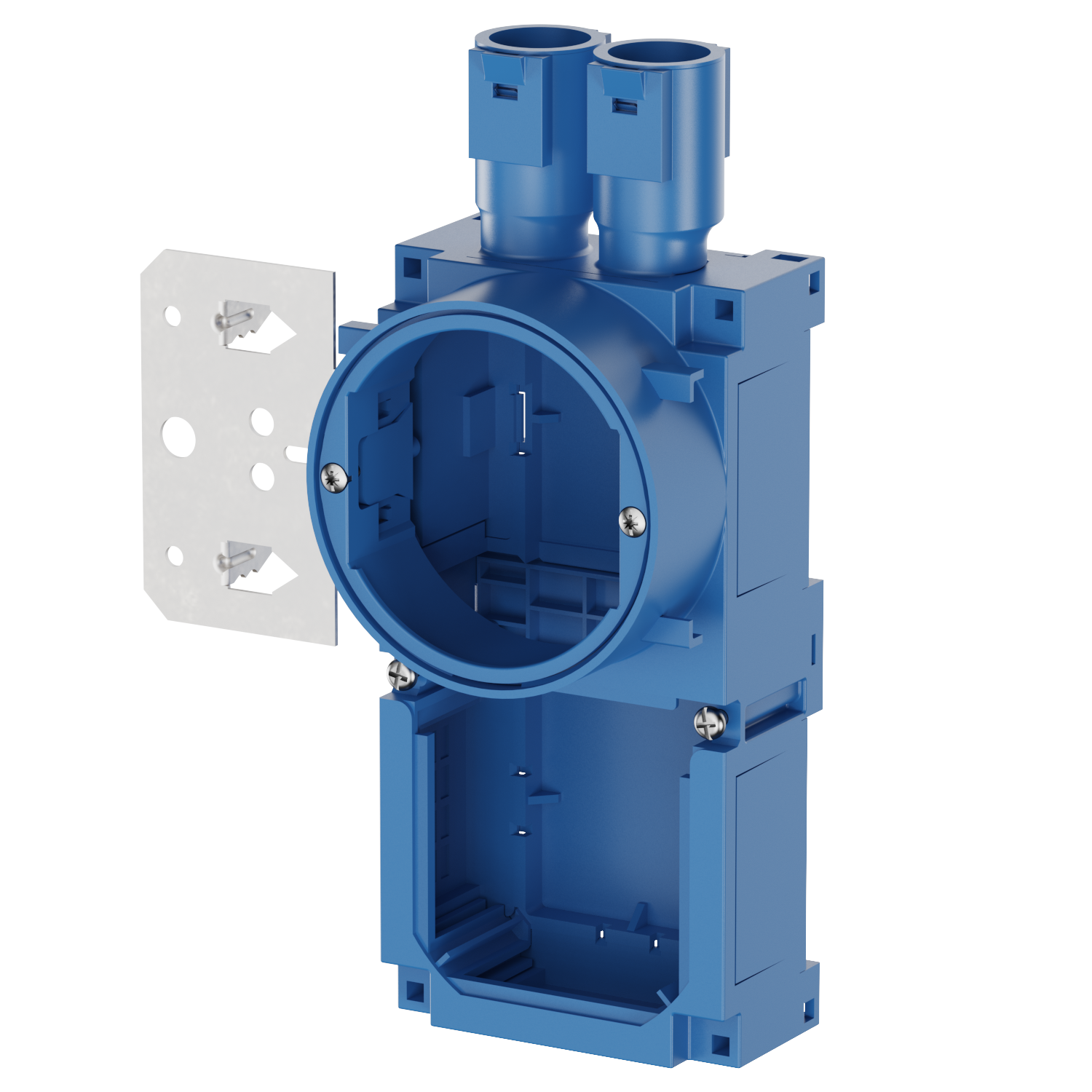

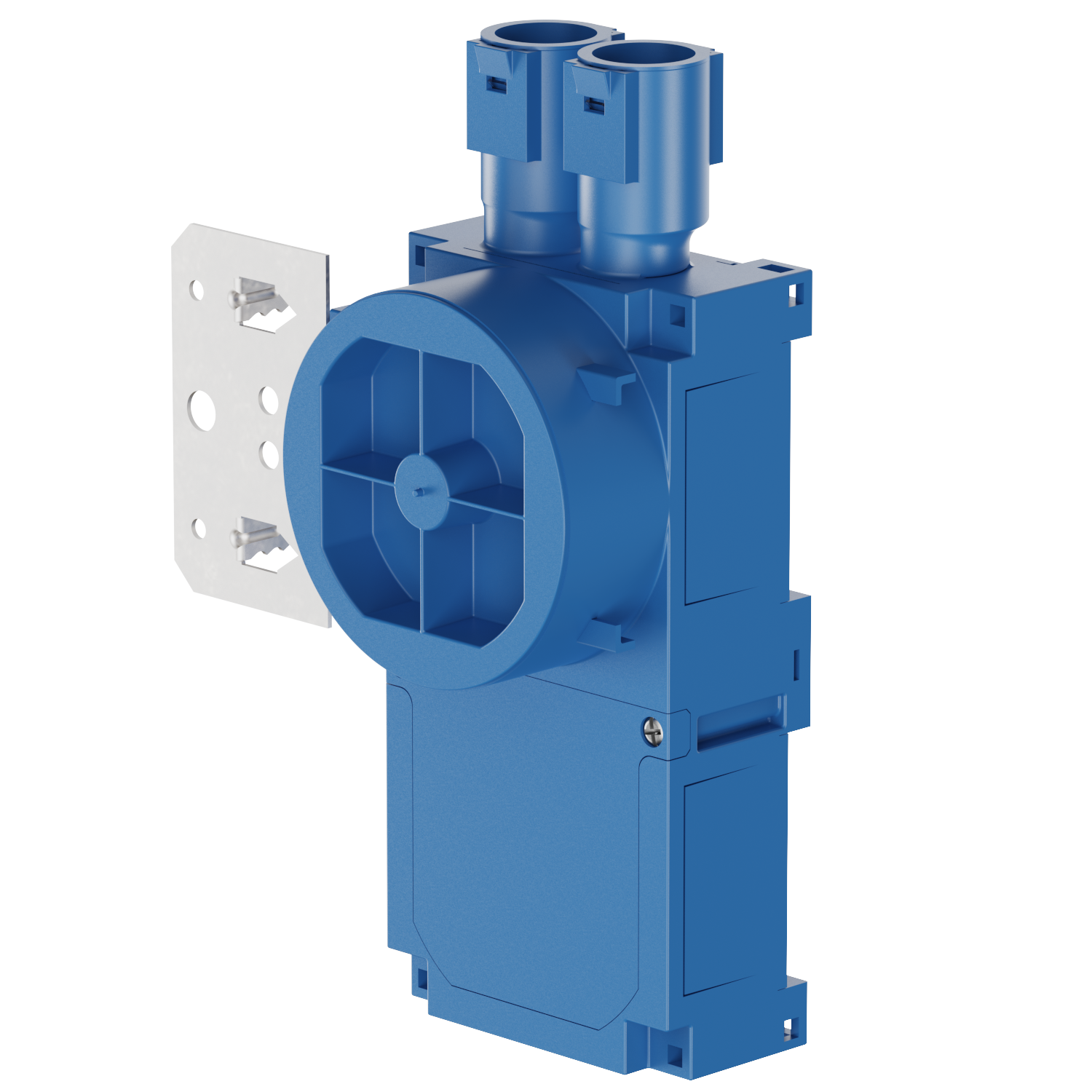

Product Gallery
Key Features
- Flush mounting big wall boxes for accessories , universal series
- PP
- IP30
- conduit entries 2 × Ø16 / Ø20mm(ETM331S) , double conduit entries 2xØ16(ETM393S) ,
- and triangle conduit entries 3 × Ø16(ETM389S) ……
- All conduit entries with locking springs and sealing plugs
Downloads & Documents
Download Product SheetCatalogue Product SheetInternal Links
Technical Specifications
| Specification | Value |
|---|---|
| Product Model | ETM742S |
| Product Type | Box |
| Product family | Hollow & Timber Wall Boxes |
| Series | Simple Series |
| Size / Depth | 71 mm |
| Material | PP |
| IP Rating | IP30 |
| Conduit Entry | conduit entries 2 × Ø16 / Ø20 mm(ETM331S) , double conduit entries 2xØ16(ETM393S) , and triangle conduit entries 3 × Ø16(ETM389S) …… All conduit entries with locking springs and sealing plugs |
| Fixing Method | With Steel fastening plate, steel plate for fastening directly to wooden stanchions or with screws to steel stanchions fixing center c-c 60 mm and M3 screws. Turn able inner ring with fixing center 60 mm and ST2 . 9 screws with long pitch |
| Inner Ring Adjustment | Turn able inner ring with fixing center 60 mm and ST2 . 9 screws with long pitch Flush mounting big wall box, turnable inner ring, for single wall plate 12 mm, with 1x2-way |
Application Context
Current product taxonomy lists this model under:
- Commercial & Office
- Prefab & Modular Housing
- Prefab Construction
- Residential Electrical Installation
- Wooden Wall Construction
Market Fit Review
Selection depends on the project wall structure, conduit entry, mounting dimensions and local device system. Share your target market, existing model or drawing for a feasibility review.
- Target market
- Reference model or drawing
- Wall structure
- Device or cover frame requirement
- Certificate or declaration requirement
