ETM420P
IP20Socket outlet · White
Flush; Pozidriv screw terminals 1.5–2.5 mm²; fits flush boxes, fixing c-c 67 mm
Perilex · DIN 49445 / 49446 · 16 A 230/400 V~
Perilex sockets, plugs & cord sets
An extra source you can qualify now.
Five-pin cooker connectors for electrical wholesalers and private-label brands across the Netherlands, Austria, Sweden and Belgium. Send us the article numbers you stock today and we will reply with matching models, datasheets, certificates and a quotation.
DIN 49445 / 49446Socket form A2 and plug, IEC 60884-1
Certified per modelSS 428 08 34 (SE) · NEN 1020-1 (NL) · NEK 502 (NO) · DIN VDE 0620 (DE)
50,000 pcs / monthStandard lead time 5–6 weeks
Perilex in 20 seconds
Perilex is a five-pin connector for three-phase power.
16 A · 230/400 V~ · socket to DIN 49445, plug to DIN 49446.
No commitment · Datasheets and certificates per model
Distributor → range & supplyPrivate label → your brandInstaller → technical data
- 5
- certified models, each with its own product safety certificate
- SE · NL · NO · DE
- national Perilex standards covered
- 50,000 pcs
- monthly production capacity
- 5–6 weeks
- standard lead time
Product range
The Perilex range
16 A · 230/400 V~ · 3P+N+PE · DIN 49445 / 49446
Sockets & plugs
ETM422P
IP20Socket outlet · White
Surface; Pozidriv screw terminals 1.5–2.5 mm²; fixing distance 49 mm
ETM421S
IP20Plug, rewirable · White
Side (lateral) cable entry; pillar terminals for all wire types, 1.5–2.5 mm²; brass pins
ETM423S
IP20Plug, rewirable · White
Straight (longitudinal) cable entry; pillar terminals for all wire types, 1.5–2.5 mm²; nickel-brass pins
Cord sets
ETM277S
IP20Plug with cord, moulded (non-rewirable), PVC · White / Black
Solid pins; cord H05VV-F, H05V2V2-F, H05RR-F or H07RN-F, 5G1.5 / 5G2.5 mm²

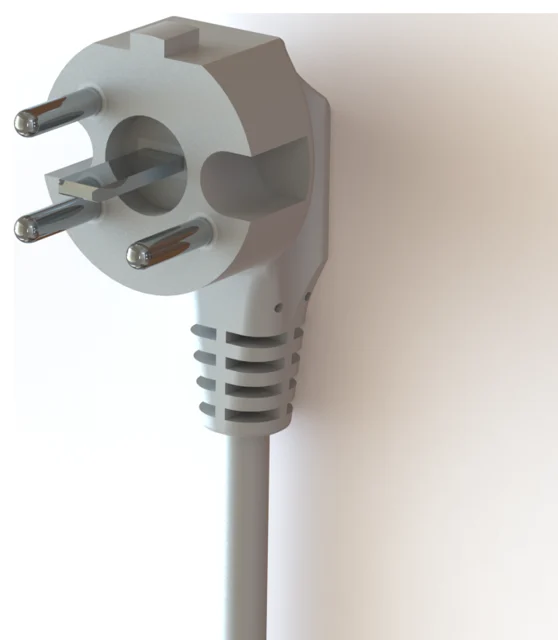

ETM248S
IP20Plug with cable, moulded · White
3P+PE; moulded plug with H05VV-F 4G1.5 mm² cable
Combination & pre-wired units
ETM424P
IP20Cooker & oven outlet combination · White
Perilex 16 A 230/400 V~ + Schuko 16 A 250 V~; surface unit: Perilex socket, junction box and Schuko socket, pre-wired H07V-R 2.5 mm²
ETM689P-1
IP20Floor box with Perilex socket · White
ETM420P socket pre-wired into ETM689P floor installation box (EN 60670-1)
| Model | Type | Key specifications | IP | Colour | Certificate |
|---|---|---|---|---|---|
| Sockets & plugs | |||||
| ETM420P | Socket outlet | Flush; Pozidriv screw terminals 1.5–2.5 mm²; fits flush boxes, fixing c-c 67 mm | IP20 | White | SS 428 08 34 |
| ETM422P | Socket outlet | Surface; Pozidriv screw terminals 1.5–2.5 mm²; fixing distance 49 mm | IP20 | White | SS 428 08 34 · NEK 502 |
| ETM421S | Plug, rewirable | Side (lateral) cable entry; pillar terminals for all wire types, 1.5–2.5 mm²; brass pins | IP20 | White | SS 428 08 34 · DIN VDE 0620 |
| ETM423S | Plug, rewirable | Straight (longitudinal) cable entry; pillar terminals for all wire types, 1.5–2.5 mm²; nickel-brass pins | IP20 | White | SS 428 08 34 · DIN VDE 0620 |
| Cord sets | |||||
| ETM277S | Plug with cord, moulded (non-rewirable), PVC | Solid pins; cord H05VV-F, H05V2V2-F, H05RR-F or H07RN-F, 5G1.5 / 5G2.5 mm² | IP20 | White / Black | IEC 60884-1 · NEN 1020-1 |
| ETM248S | Plug with cable, moulded | 3P+PE; moulded plug with H05VV-F 4G1.5 mm² cable | IP20 | White | Not separately certified |
| Combination & pre-wired units | |||||
| ETM424P | Cooker & oven outlet combination | Perilex 16 A 230/400 V~ + Schuko 16 A 250 V~; surface unit: Perilex socket, junction box and Schuko socket, pre-wired H07V-R 2.5 mm² | IP20 | White | Not separately certified |
| ETM689P-1 | Floor box with Perilex socket | ETM420P socket pre-wired into ETM689P floor installation box (EN 60670-1) | IP20 | White | Not separately certified |
Stocking a Perilex item that isn't listed? Send us the article number. We'll map it to our range — or tell you it doesn't fit.
Send the article numberCross-reference & quotation
Send your current article numbers
We reply with equivalent models, datasheets, certificates and a quotation. No commitment.
- Matching model for each article you stock
- Datasheets, drawings and certificates per model
- Pricing per model and quantity, standard lead time 5–6 weeks
How it works
Qualify a second Perilex source before you need one
Perilex is a low-value item that installers expect on the shelf every week. Adding a qualified extra source keeps a supply gap from turning into lost orders.
- Send your article numbersTell us the Perilex items you stock today and the annual volumes.
- Model match & datasheetsWe map each item to our model and send datasheets, drawings and certificates.
- QuotationPricing per model and quantity, with 5–6 weeks standard lead time.
- First orderUnder your own article numbers and brand, or ours.
Certificates
Certified per model, not "for the range"
Each certified model carries its own European product safety certificate, tested to IEC 60884-1 and the national Perilex standard sheet. Certificate copies are available on request.
Select a market to highlight the models certified to its national standard.
ETM420P
Ref. SE-S-2200808R1
- Standards
- IEC 60884-1:2002+A1+A2
SS 428 08 34:2013+T1, standard sheet VIII - Certified scope
- Fixed socket-outlet, flush, rewirable, 3P+N+PE, 16 A 400/230 V~, class I, IP20, screw terminals
Valid until28 Jun 2027
ETM422P
Ref. SE-S-2200809
- Standards
- IEC 60884-1:2022
SS 428 08 34:2024, standard sheet VIII
NEK 502:2016+A1, standard sheet XIX - Certified scope
- Fixed socket-outlet, surface, rewirable, 3P+N+PE, 16 A 400/230 V~, class I, IP20, screw terminals, with base plate
Valid until20 May 2031
ETM421SETM423S
Ref. SE-S-2201015
- Standards
- IEC 60884-1:2002+A1+A2
SS 428 08 34:2013+T1, standard sheet IX
DIN VDE 0620-1:2016+A1
DIN VDE 0620-2-1:2016+A1 - Certified scope
- Plug, rewirable, 3P+N+PE, 16 A 400/230 V~, class I, IP20, pillar terminals; ETM421S lateral cord entry, ETM423S longitudinal cord entry
Valid until23 Aug 2027
ETM277S
Ref. SE-S-2600782
- Standards
- IEC 60884-1:2022
NEN 1020-1:2024, standard sheet IX - Certified scope
- Plug with cord, non-rewirable, 3P+N+PE, 16 A 400/230 V~, class I, IP20; cords H05VV-F, H05RR-F, H07RN-F, 5 × 1.5 / 2.5 mm²
Valid until27 Aug 2031
Technical data
Common data, dimensions and installation
For technical and quality review: the shared ratings of the range, dimension drawings per model and installation details.
Common data
- Standards
- IEC 60884-1 · DIN 49445 form A2 (socket) · DIN 49446 (plug)
- Rated current / voltage
- 16 A · 230/400 V~ · 50 Hz
- Conductors
- Three phases (L1, L2, L3), neutral (N), protective earth (PE)
- Conductor range
- 1.5–2.5 mm²
- Main material
- PC, halogen-free; thermoplastic cover (ETM277S: PVC moulded enclosure)
- Glow-wire test
- 650 / 850 °C, IEC 60695-2-11
- Working temperature
- −25 °C to +60 °C
- Installation temperature
- −5 °C to +25 °C
- Protection
- IP20
- Colour
- White (ETM277S: white or black)
- Directives
- RoHS · WEEE

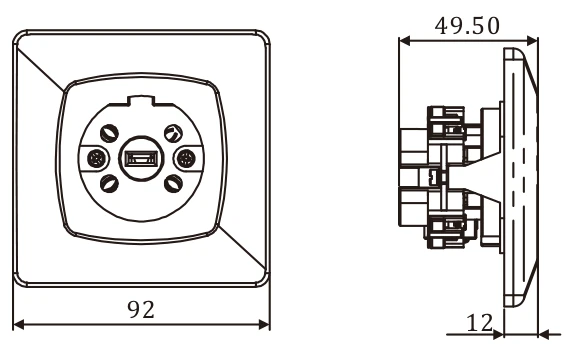

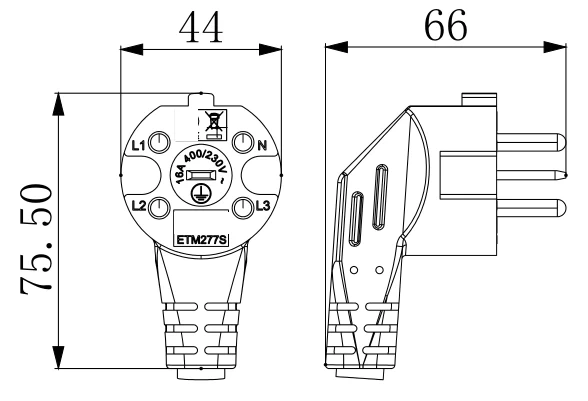

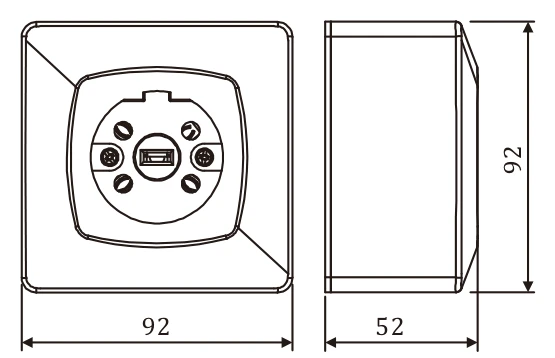

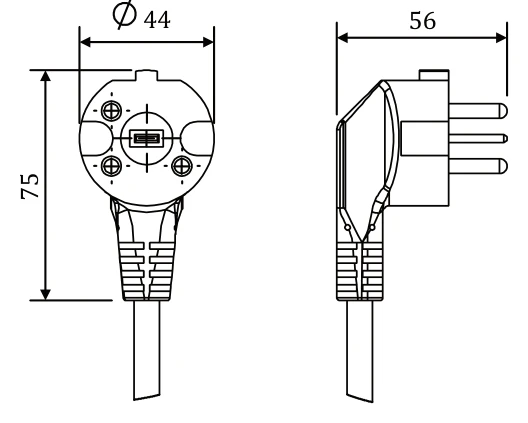

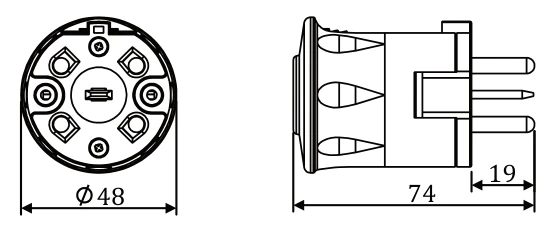

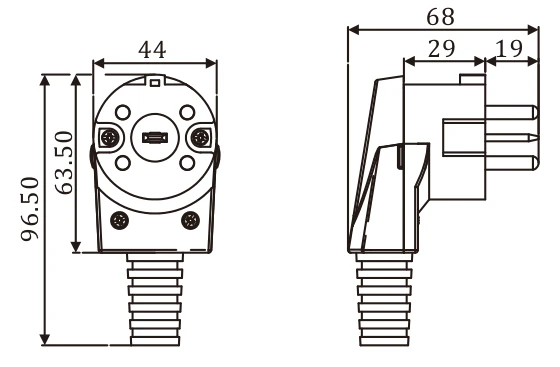

Dimensions (mm)
ETM424P: 85 × 240 × 56 · ETM689P-1: 96 × 150 × 52
Built for the installer
Thermoplastic cover
Halogen-free PC housing, glow-wire tested to 650 / 850 °C.
Pozidriv screw terminals
Socket bases take 1.5–2.5 mm² conductors for flush wiring.
Pillar terminals in the plug
Rewirable plugs accept all kinds of wire, 1.5–2.5 mm², with side or straight cable entry.
Pre-wired options
Combination and floor-box units come wired, colour-coded L1 brown, L2 black, L3 grey, N blue, PE green-yellow.
One order: socket + box
In the wall, in the floor, pre-wired
The flush Perilex socket installs in a wall box. Source sockets and installation boxes from one supplier, in one order.
ETM420P flush socket in a wall box
Fits flush junction boxes with 67 mm fixing centres (c-c).

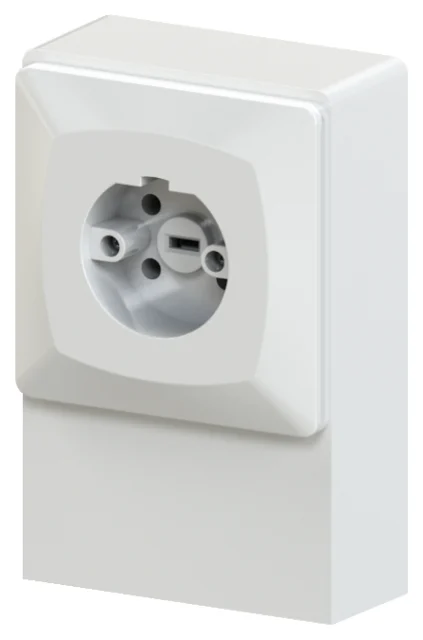

ETM689P-1 floor box
ETM420P pre-wired into the ETM689P floor installation box, for wooden skirting trunking. Lower housing serves as a junction box (max. 5 terminals).

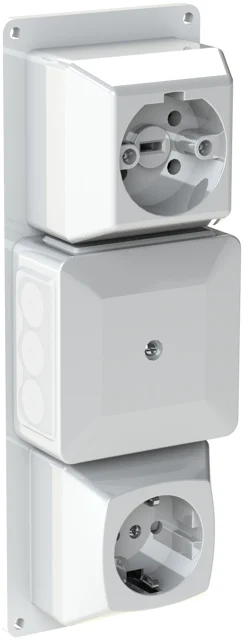

ETM424P cooker & oven unit
Perilex socket, junction box and Schuko socket in one surface unit, pre-wired with colour-coded H07V-R 2.5 mm².
Private label
Your brand on Perilex
Product marking and packaging to your specification, listed under your own article numbers.
BrandYour markingYour brand on the product and on the packaging.
Art. no.Your article numbersEach model supplied under your own article number.
EANBarcodesEAN per article and packaging unit, ours or yours.
Applications
Where Perilex is used

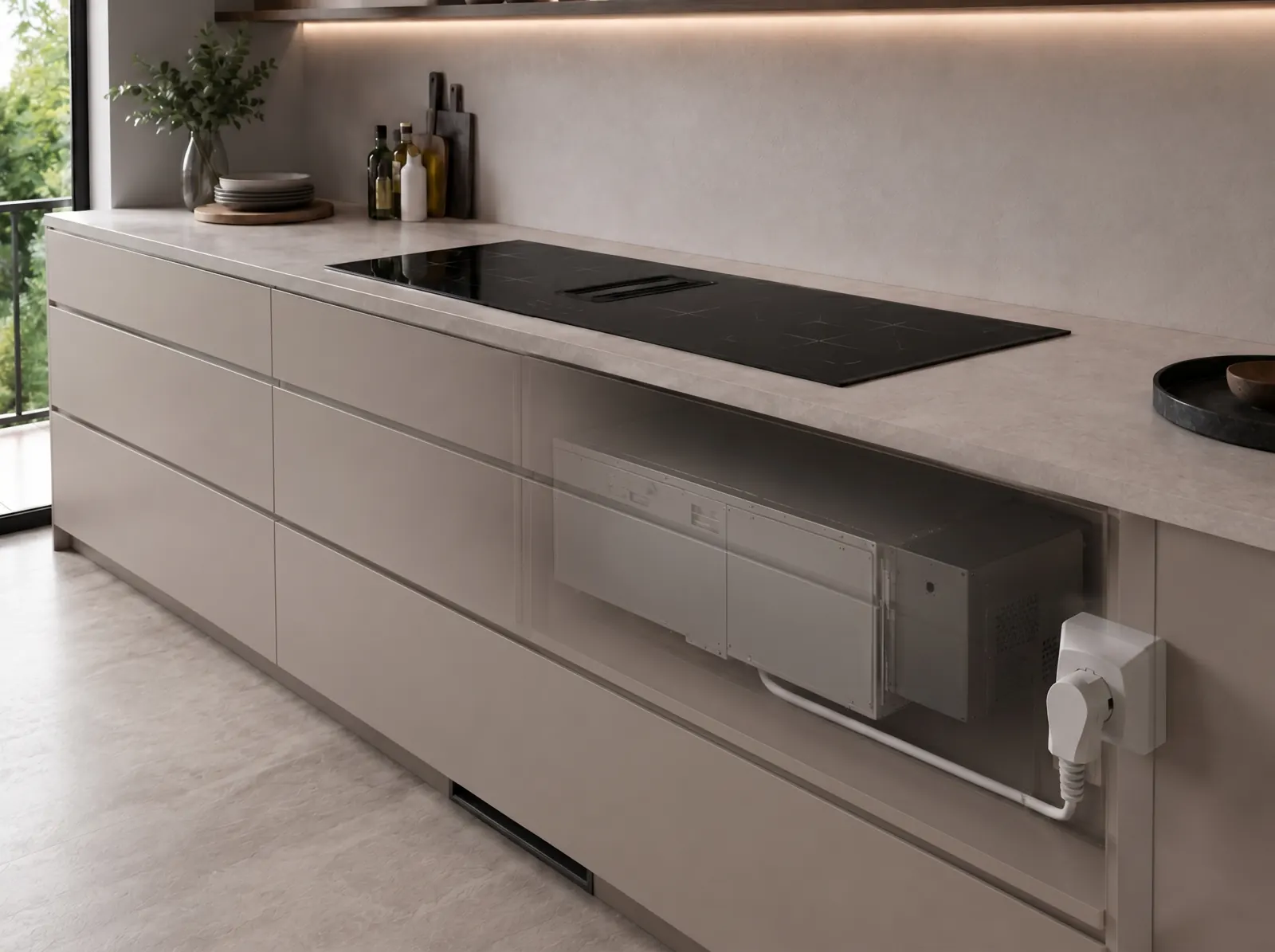

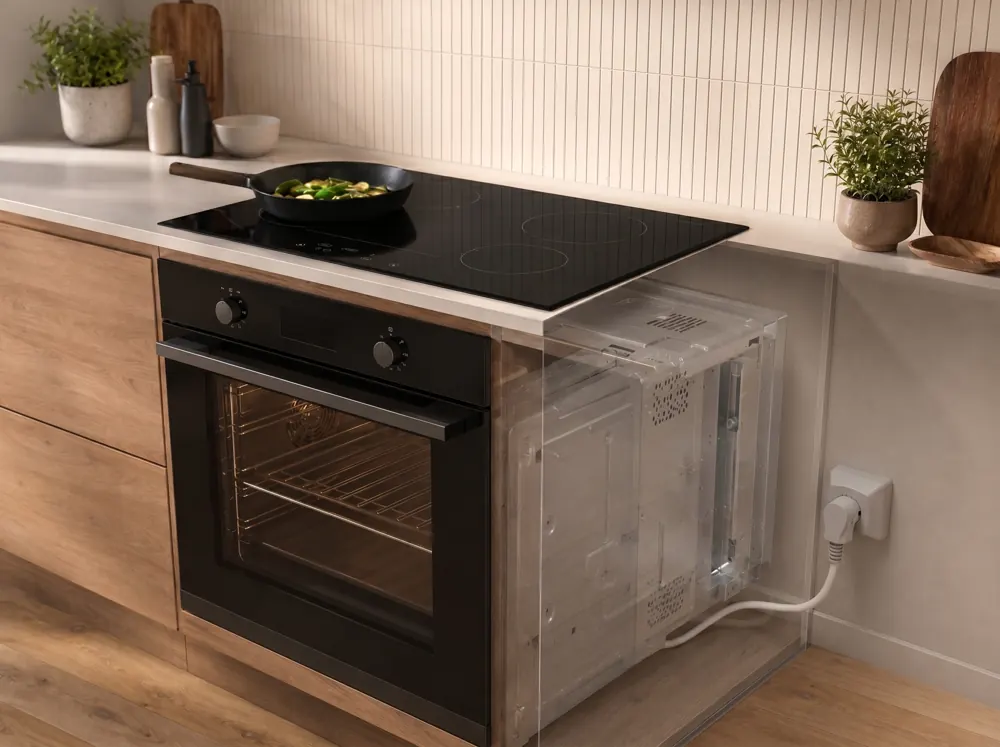

Behind the hob, under the oven, inside the island: the connection nobody sees, and every installer needs on the shelf.
Application images are illustrations; appliances shown in cutaway.
FAQ
Questions distributors ask first
Will your plugs and sockets mate with Perilex products already installed?
They are built to the DIN 49445 / 49446 Perilex dimensions, the same standard as products in the field. Send us the article numbers you stock and we will match each one to our model, with drawings for comparison.
Which certificates do you have?
Certificates are stated per model. The sockets ETM420P and ETM422P and the plugs ETM421S and ETM423S are certified to IEC 60884-1 and the Swedish standard SS 428 08 34; ETM422P also to NEK 502, the plugs also to DIN VDE 0620. The ETM277S cord set is certified to IEC 60884-1 and the Dutch standard NEN 1020-1. ETM248S, ETM424P and ETM689P-1 are not separately certified. Certificate copies are available on request.
Can you supply under our brand?
Yes. Private label covers product marking, packaging and EAN codes to your specification, under your own article numbers.
Do you supply Perilex cord sets for hobs?
Yes. ETM277S is a moulded 3P+N+PE Perilex plug with a five-core cord: H05VV-F, H05V2V2-F, H05RR-F or H07RN-F, 1.5 or 2.5 mm², in white or black. It is certified to IEC 60884-1 and the Dutch standard NEN 1020-1.
How long is the lead time?
Standard lead time is 5–6 weeks. Monthly capacity is 50,000 pieces.
