Universal Series
ETM220S-1 Installation Box
Multibox for prefabricated walls, Ø71 mm, depth 60 mm.
Model: ETM220S-1 Type: Box Size: 60 mm Inlets: 2 fixed Ø16 mm entries Applications: Commercial & Office, Prefab & Modular Housing, Prefab Construction, Residential Electrical Installation Supply Mode: RFQ
ModelETM220S-1
Product TypeBox
Size / Depth60 mm
Inlets2 fixed Ø16 mm entries
MaterialPP, halogen free
ApplicationsCommercial & Office, Prefab & Modular Housing, Prefab Construction, Residential Electrical Installation
DocumentsVerified model documents
Product Overview

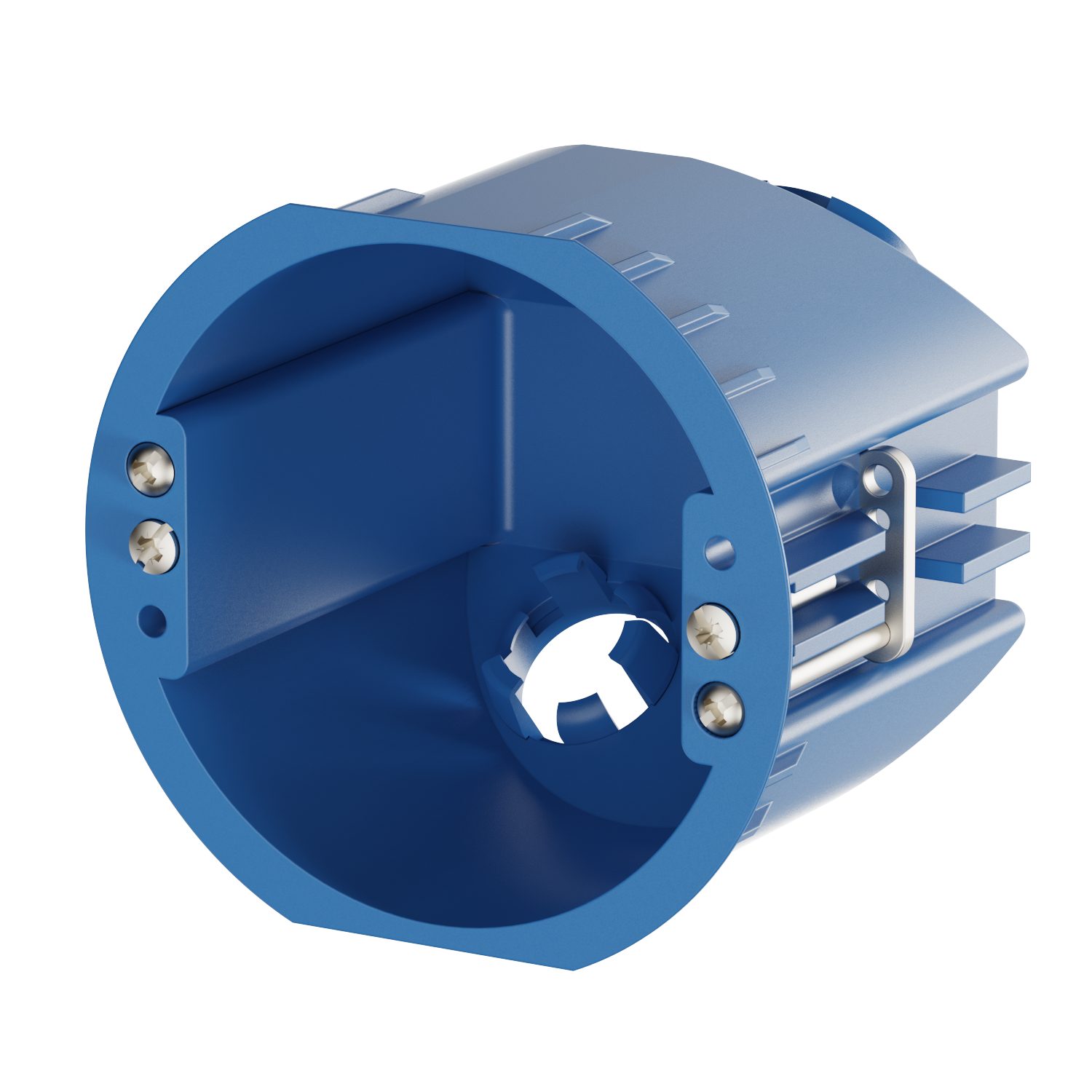

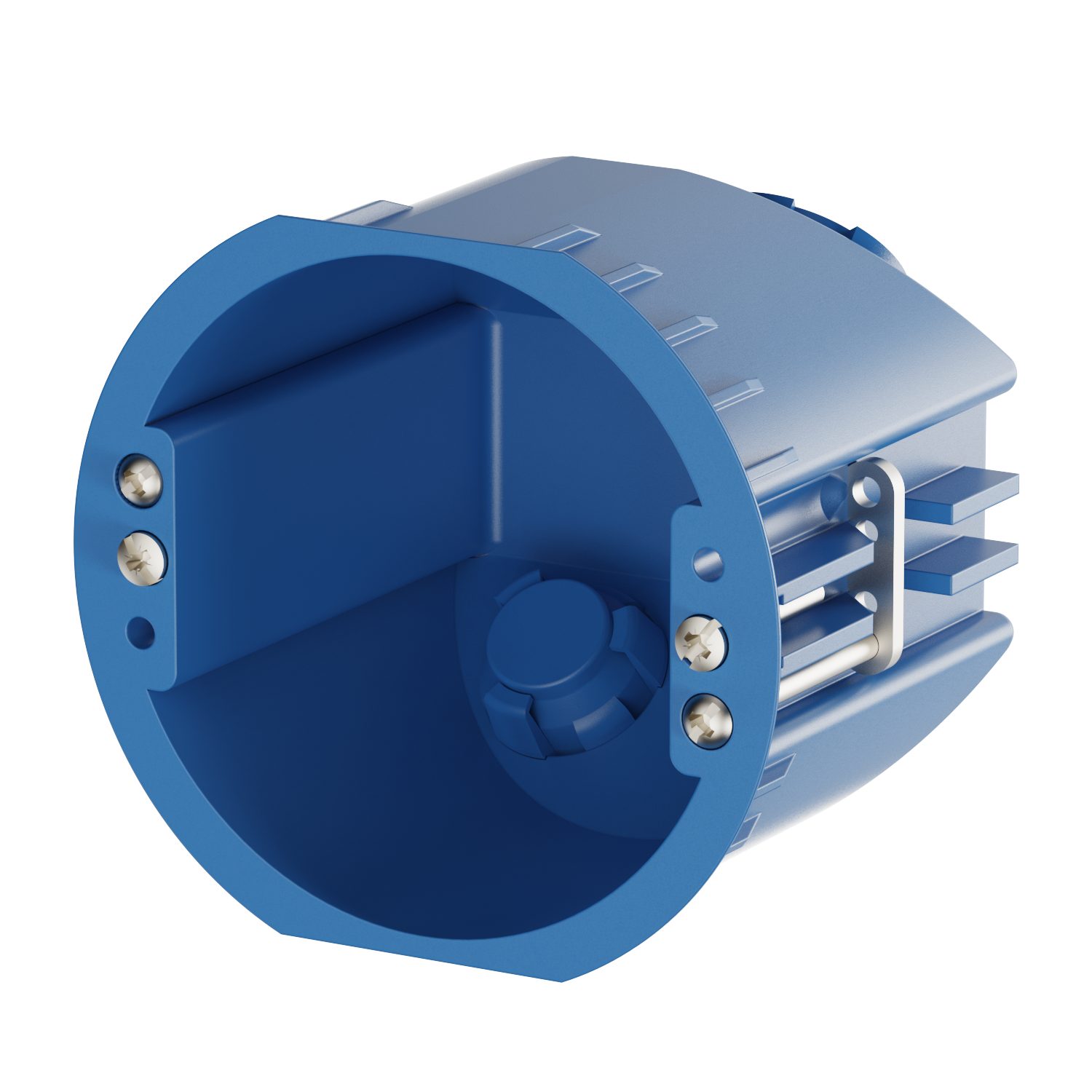

ETM220S-1 is a multibox for prefabricated walls or hollow walls where installation work can be conducted from the outside. It provides an extra flush wall box for panels with a minimum thickness of 6 mm.
Product Gallery
Key Features
- Multibox for prefabricated walls, Ø71 mm, depth 60 mm
- For prefabricated walls or hollow walls with installation from the outside
- Requires a minimum panel thickness of 6 mm
- 2 fixed Ø16 mm entries with locking springs, sealing plugs and plastic lid included
- Box screw distance c-c 60 mm with M3 screws
Downloads & Documents
Download Product SheetCatalogue Product SheetInternal Links
Technical Specifications
| Specification | Value |
|---|---|
| Product Model | ETM220S-1 |
| Product Type | Box |
| Product family | Hollow & Timber Wall Boxes |
| Series | Universal Series |
| Size / Depth | 60 mm |
| Inlets | 2 fixed Ø16 mm entries |
| Material | PP, halogen free |
| IP Rating | IP20 |
| Conduit Entry | 2 fixed Ø16 mm entries; locking springs, sealing plugs and plastic lid are included. |
| Fixing Method | Box screw distance c-c 60 mm and M3 screws. |
Application Context
Current product taxonomy lists this model under:
- Commercial & Office
- Prefab & Modular Housing
- Prefab Construction
- Residential Electrical Installation
Market Fit Review
Selection depends on the project wall structure, conduit entry, mounting dimensions and local device system. Share your target market, existing model or drawing for a feasibility review.
- Target market
- Reference model or drawing
- Wall structure
- Device or cover frame requirement
- Certificate or declaration requirement
Request a Quote for ETM220S-1
Pricing depends on product model, quantity, packaging, documentation requirements, customization needs and delivery destination. Send your requirements for project-based quotation support.
- Product model
- Quantity
- Target market
- Wall type
- Reference model or drawing
- Device or cover frame requirement
- Required documents
- Packaging requirement
- Certificate or declaration requirement
- Delivery destination
- Project timeline
