Simple Series
ETM610S Flush Mounting Box
Double flush mounting wall boxes for accessories, 60mm
Model: ETM610S Type: Box Size: 60 mm Applications: Commercial & Office, Prefab & Modular Housing, Prefab Construction, Residential Electrical Installation, Wooden Wall Construction Supply Mode: RFQ
ModelETM610S
Product TypeBox
Size / Depth60 mm
MaterialPP, halogen free
ApplicationsCommercial & Office, Prefab & Modular Housing, Prefab Construction, Residential Electrical Installation, Wooden Wall Construction
DocumentsVerified model documents
Product Overview
Double flush mounting wall boxes for accessories, 60mm

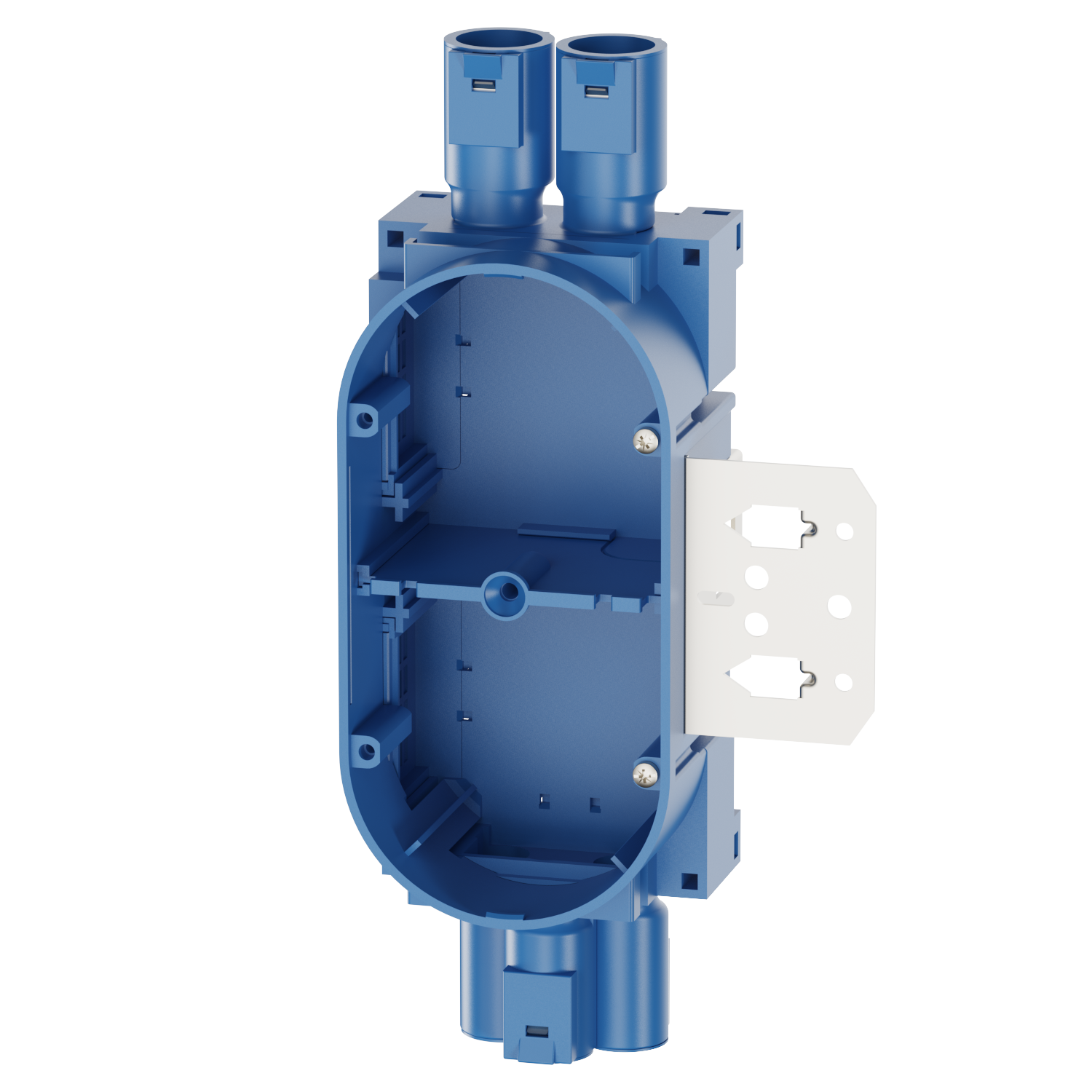

Product Gallery
Key Features
- Double flush mounting wall boxes for accessories, 60mm
- PP, halogen free
- IP20
- One side with 2-way compatible Ø 20mm or Ø 16mm conduit entries, with locking springs
- Another side with 3-way Ø 16mm conduit entries, with locking springs and sealing plugs
- with 2 combined 16/20mm inlets and 3x16mm inlets
Downloads & Documents
Download Product SheetCatalogue Product SheetInternal Links
Technical Specifications
| Specification | Value |
|---|---|
| Product Model | ETM610S |
| Product Type | Box |
| Product family | Hollow & Timber Wall Boxes |
| Series | Simple Series |
| Size / Depth | 60 mm |
| Material | PP, halogen free |
| IP Rating | IP20 |
| Conduit Entry | One side with 2-way compatible Ø20 mm or Ø16 mm conduit entries, with locking springs Another side with 3-way Ø16 mm conduit entries, with locking springs and sealing plugs with 2 combined 16/20 mm inlets and 3x16mm inlets |
| Fixing Method | With or without steel fastening plate, steel plate for fastening directly to wooden stanchions or with screws to steel stanchions. Fixing centre c-c 60 mm and M3 screws, 71 mm gang distance. |
Application Context
Current product taxonomy lists this model under:
- Commercial & Office
- Prefab & Modular Housing
- Prefab Construction
- Residential Electrical Installation
- Wooden Wall Construction
Market Fit Review
Selection depends on the project wall structure, conduit entry, mounting dimensions and local device system. Share your target market, existing model or drawing for a feasibility review.
- Target market
- Reference model or drawing
- Wall structure
- Device or cover frame requirement
- Certificate or declaration requirement
Request a Quote for ETM610S
Pricing depends on product model, quantity, packaging, documentation requirements, customization needs and delivery destination. Send your requirements for project-based quotation support.
- Product model
- Quantity
- Target market
- Wall type
- Reference model or drawing
- Device or cover frame requirement
- Required documents
- Packaging requirement
- Certificate or declaration requirement
- Delivery destination
- Project timeline
