ETM931S Concrete Installation Box
Universal Series concrete connection box with BULO, six Ø20 mm entries and one Ø25/20 mm entry.
Product Overview
Universal Series concrete connection box. The catalog identifies ETM931S as the BULO configuration and the model-specific drawing records six Ø20 mm entries plus one Ø25/20 mm entry.
Product Gallery

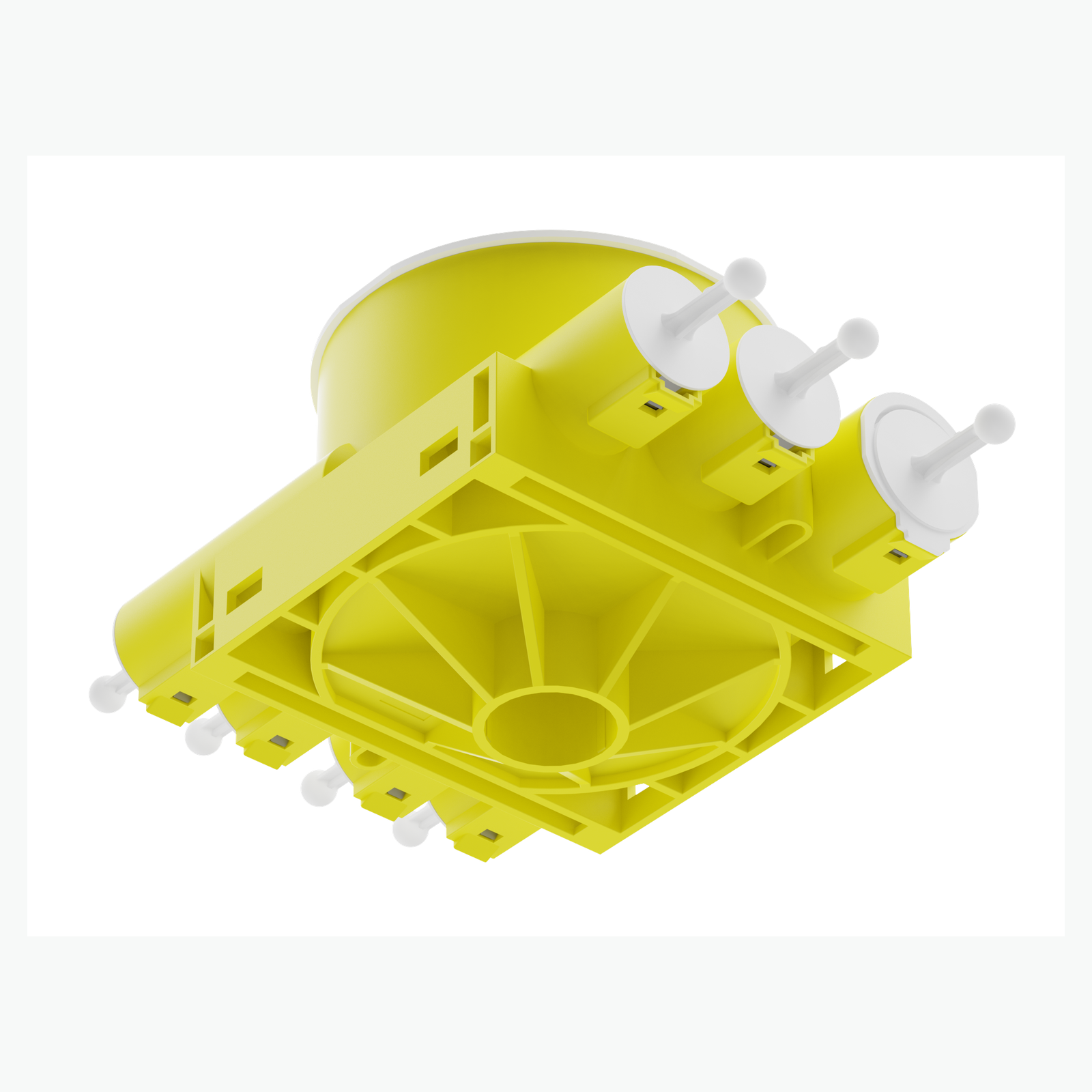

Engineering views from the current product record.
Key Features
- Universal Series; yellow box body
- BULO configuration
- Outer Ø75 mm / inner Ø57.5 mm; CC 67 mm; overall height 172 mm
- 6 × Ø20 mm conduit entries plus 1 × Ø25/20 mm entry
- Locking springs and sealing plugs
- Drawing body height 131.4 mm; side dimension 85.4 mm
Downloads & Documents
Download Product SheetCatalogue Product SheetTechnical Specifications
| Specification | Value |
|---|---|
| Product Model | ETM931S |
| Product Type | Box |
| Product family | Concrete & Precast Boxes |
| Size / Depth | Outer Ø75 mm / inner Ø57.5 mm; CC 67 mm; overall height 172 mm; body height 131.4 mm; side dimension 85.4 mm |
| Inlets | 6 × Ø20 mm conduit entries plus 1 × Ø25/20 mm entry |
| Material | PP |
| IP Rating | IP30 |
| Conduit Entry | 6 × Ø20 mm + 1 × Ø25/20 mm; locking springs and sealing plugs |
| Fixing Method | BULO configuration; magnet mounting is stated for the Universal Series concrete/pre-fabricated wall boxes |
Application Context
Current product taxonomy lists this model under:
- Precast Concrete Plants
Market Fit Review
Selection depends on the project wall structure, conduit entry, mounting dimensions and local device system. Share your target market, existing model or drawing for a feasibility review.
- Target market
- Reference model or drawing
- Wall structure
- Device or cover frame requirement
- Certificate or declaration requirement
