Concrete & Precast Boxes
ETM834S Concrete Installation Box
Six-way concrete roof box, without lid, with 70 mm centre distance and 83 mm height.
Product Overview
Flush mounting roof box for concrete and pre-fabricated house factory installation in the Universal Series. ETM834S is listed as a six-way roof box without lid, CC 70 mm and H=83 mm.

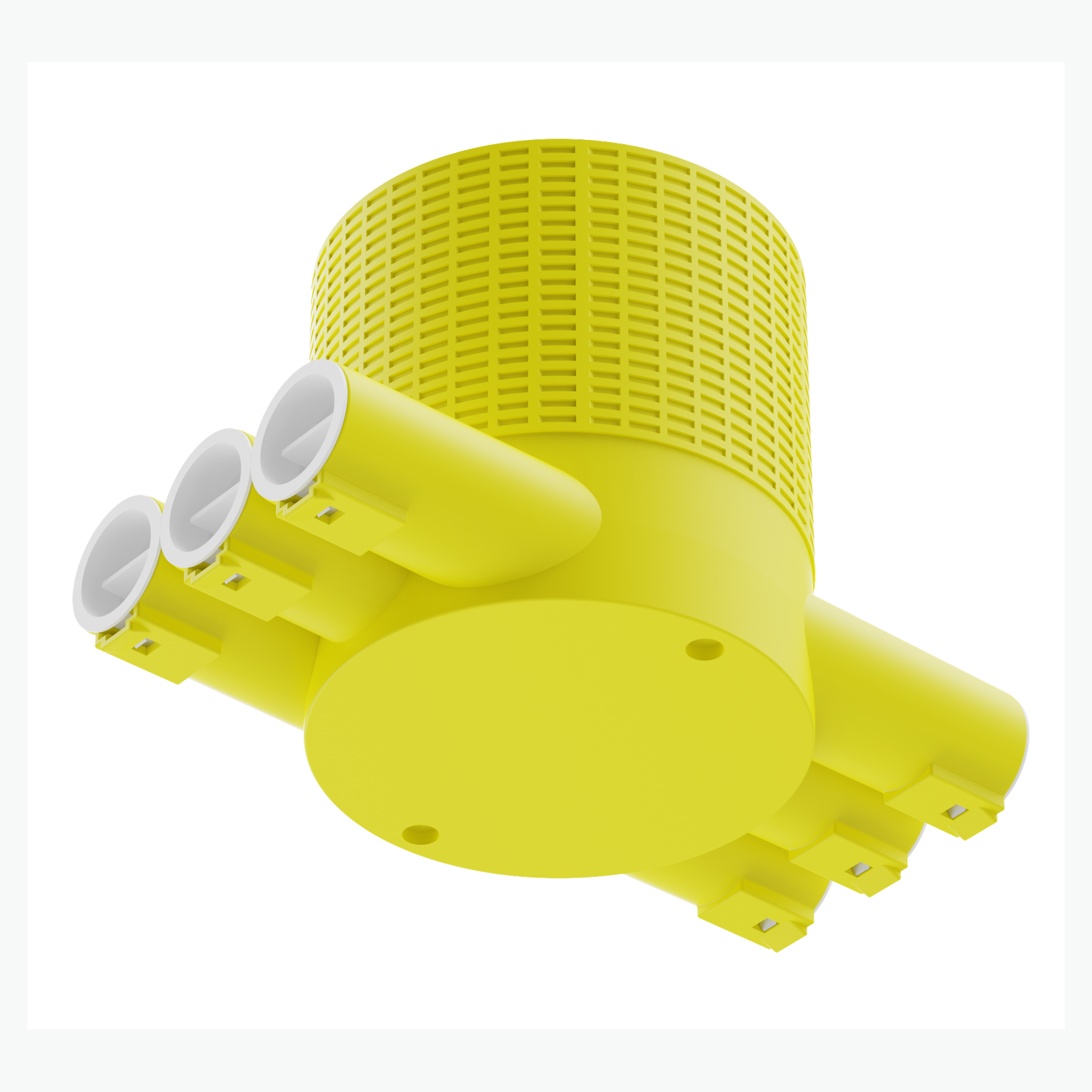

Product Gallery
Engineering views from the current product record.
Key Features
- Universal Series; yellow box body
- Ø83 mm body; depth 88.5 mm; CC 70 mm; H=83 mm
- Six Ø20 mm conduit inlets with locking springs and sealing plugs
- M4 mounting screws; 70 mm distance between inside mounting screws
- Insulated material; maximum load 15 kg
- Without lid
Downloads & Documents
Download Product SheetCatalogue Product SheetTechnical Specifications
| Specification | Value |
|---|---|
| Product Model | ETM834S |
| Product Type | Box |
| Product family | Concrete & Precast Boxes |
| Size / Depth | Ø83 mm body; depth 88.5 mm; CC 70 mm; H=83 mm |
| Inlets | 6 × Ø20 mm conduit inlets |
| Material | PP |
| IP Rating | IP30 |
| Conduit Entry | 6 × Ø20 mm; locking springs and sealing plugs |
| Fixing Method | M4 mounting screws; 70 mm distance between inside mounting screws |
Application Context
Current product taxonomy lists this model under:
- Precast Concrete Plants
Market Fit Review
Selection depends on the project wall structure, conduit entry, mounting dimensions and local device system. Share your target market, existing model or drawing for a feasibility review.
- Target market
- Reference model or drawing
- Wall structure
- Device or cover frame requirement
- Certificate or declaration requirement
